The Gear Box Calculator Module calculates vibration frequencies for an entire gear box. All of the speed differences because of gears are taken into account automatically.
Two new features of this program are the abilities to calculate Hunting Tooth frequencies and to calculate Sideband frequencies off of any of the frequencies generated by the Gear Box Calculator.
This is a screen shot of the Sideband Calculator.
10 harmonics for all frequencies can also be calculated by clicking the correct Harmonic radio button.

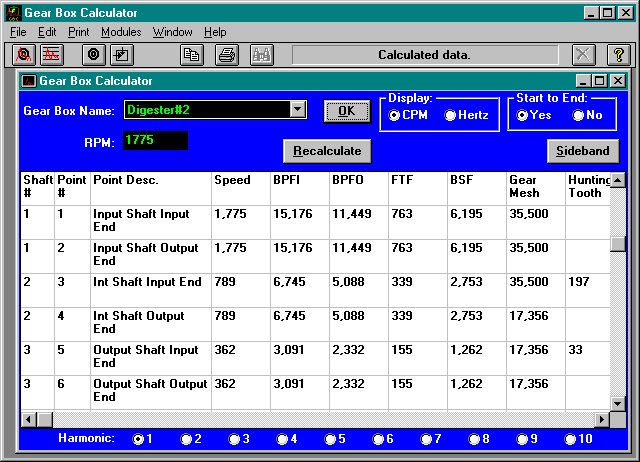

Screen Capture Of
Gear Box Calculator Module
