Gear Box Calculator
Gear Box Data Module

The Gear Box Data Module contains the elements necessary to build gear boxes. Gear boxes are made up from:

• Bearings
• Shafts
• Gears

The idea behind building a database of gearboxes is that once the gear box has been defined and saved, calculating gear box frequencies consists of nothing more than clicking a button.

Click here to view a schematic of a gearbox that is used in the Gear Box Calculator tutorial. You will notice that the gear box is made up of a number of different elements such as a bearings, shafts, and gears.

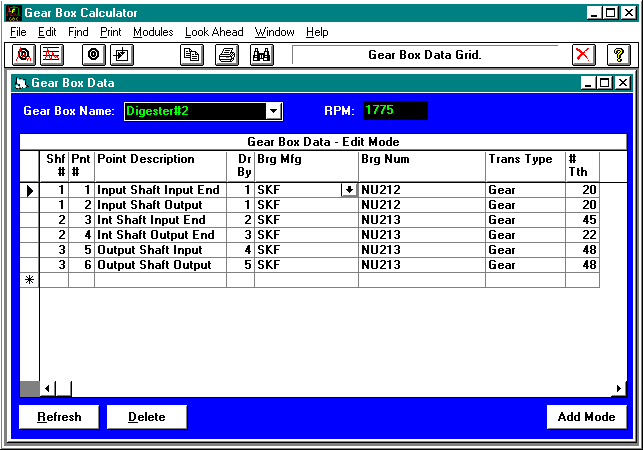

Screen Capture Of
Gear Box Data Module
